Measuring network quality - Basic course

Learn to interpret signals accurately and avoid costly mistakes. This course is a first step towards a full understanding of measuring and analysing network performance. It teaches basic principles of energy measurement and network quality monitoring.
This course has no planned dates
Are you interested?

Technical information

Course name: Measuring network quality - Basic course
Course manual: No
Type: Classroom
Course duration: 1 day
Language:Norwegian
Provider: Trainor
Trainor app

Download the Trainor-app for an overview of your courses, digital course manuals and diplomas.

Goal

The course offers a basic understanding of measuring and analysing network quality. A good basic understanding is essential in order to recognise signals indicating incorrect connections and/or settings. Correct interpretation of signals can prevent costly mistakes.

Target group

Installation managers, maintenance engineers, electrical engineers and energy consultants.

Subjects covered in the course

Basic terms

  • (T)RMS, Crest factor, peak values, average values, frequency
  • Safety (IEC61010-1), using pliers to take current readings, connecting voltage probes
  • Nominal voltage/current, effect (KW, KVA, KVAR), (non-) linear load)

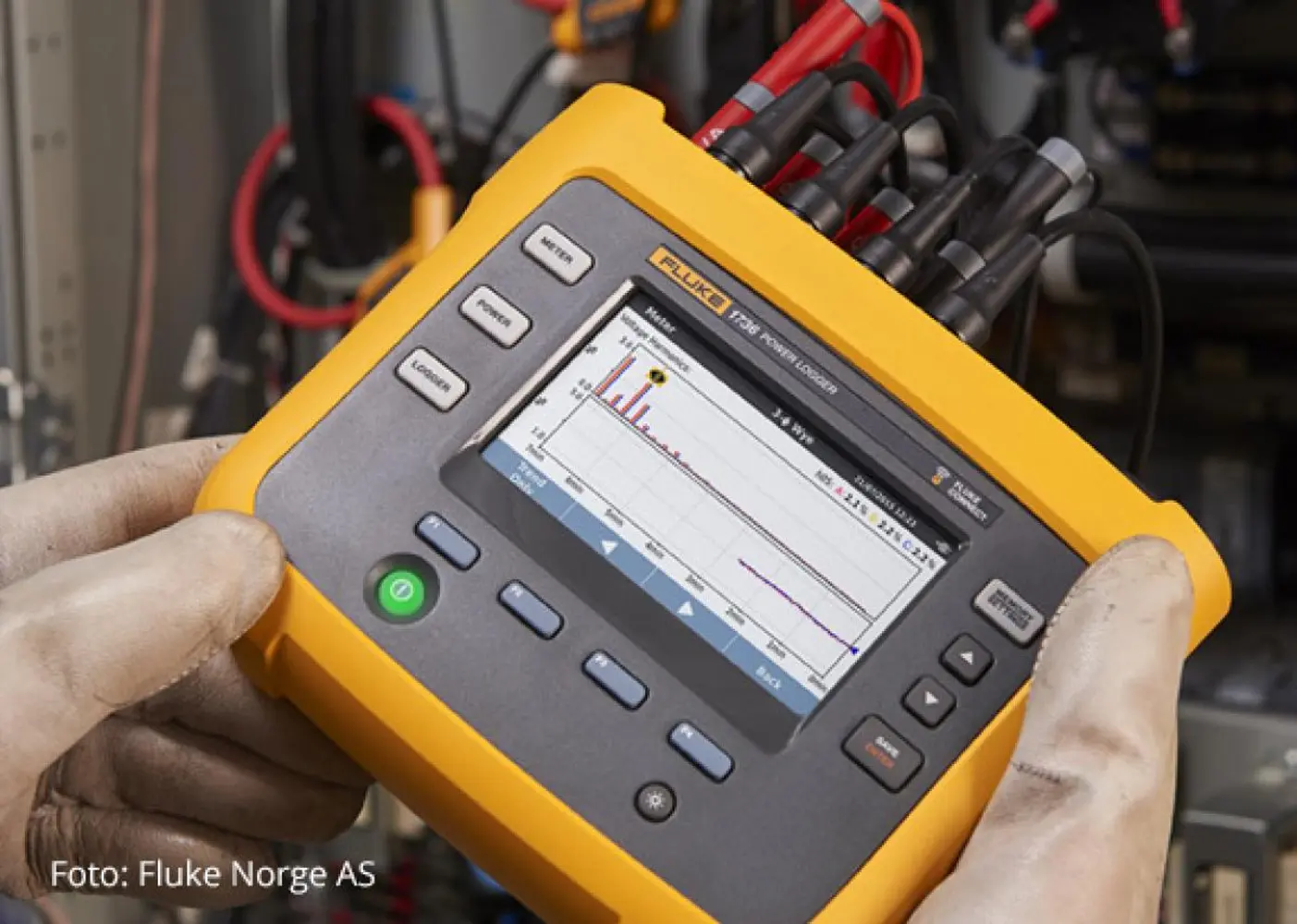

Setting up network quality measuring

  • Instrument setup (relative values, limit values, networks, phases)
  • Instrument functions (scope-metre function, calibration, instrument class)

Interpreting and systematising readings in relation to the Quality of Supply directive and EN-50160 (including limits)

  • Temporary overvoltages and undervoltages
  • Flicker
  • Harmonic voltages (including THD, TDD, %)
  • Unbalance
  • Interruptions
  • Transients
